Panel preferences

About Panel Preferences:

The Panel Preferences section allows you to make amendments to the dashboard display, based on your particular preferences and requirements at site.

Navigation:

To navigate to the Panel Preferences screen:

1. Log in to the panel using your 6-digit PIN
2. Click the navigation logo in the top left hand corner of the panel
3. Select Settings from the drop down menu
4. Select the Panel Preferences option

Understanding the Panel Preferences:

The Panel Preferences section allows you to:

1. Select which zones display in the charts section of the main dashboard.
2. Configure which zones generate alerts.
3. Enable/Disable the feedback section on the dashboard (the happy and sad faces).

The changes made in this section are global changes - that is, they are enacted for every user, not just your particular user profile.

Note: You need to have at least Site Manager level permissions to be able to access this section of the control system.

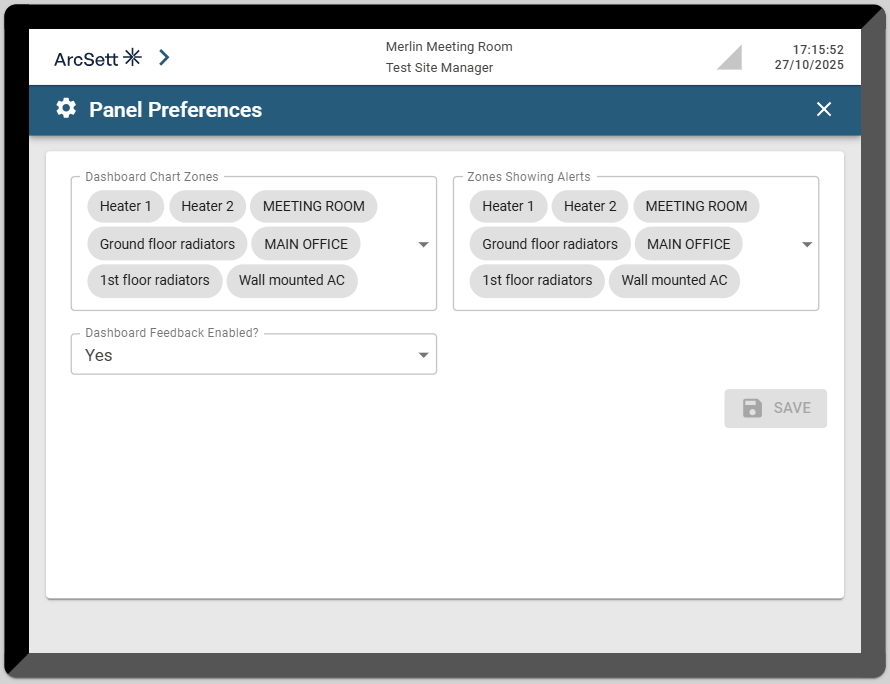

In the example above, the Site Manager has:

1. Chosen to display charting zones for the 7 selected
2. Chosen to show alerts for the 7 zones selected.
3. Chosen to enable dashboard feedback
