Day patterns

About Day Patterns:

A day pattern is a configured pattern of behaviour over a 24 hour period, from midnight to midnight. A day pattern will typically consist of:

1. A name
2. A target temperature
3. A start time
4. An end time
5. A colour code

Navigation:

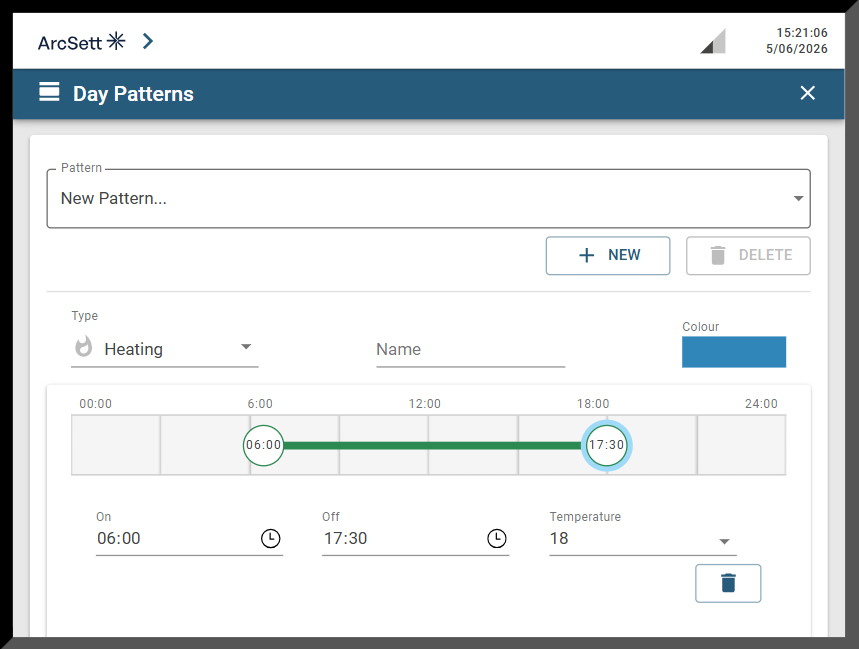

To navigate to the Day Patterns screen:

1. Log in to the panel using your 6-digit PIN
2. Click the navigation logo in the top left hand corner of the panel
3. Select Settings from the drop down menu
4. Select the Day Patterns option

Understanding Day Patterns:

Day patterns are the first step towards establishing standardised behaviour across one or many zones. Once you have establish at least 1 day pattern, this can be applied to your zones over a given period of time, so that they follow this behaviour.

Its important to note that you can have multiple day patterns, each with unique behaviours, so that you have full flexibility of your site and its zones based on the site requirements.

Day patterns can be set up and amended via the zone settings. Once you are in the zone settings for a given panel, you can select 'Day Patterns', which will allow you to configure the day patterns.

Each day pattern will be applicable for a particular type of equipment. Different types of equipment can allow for slightly different day pattern configurations, based on what the equipment is capable of doing.

You are also able to set multiple shifts over the course of the day. A shift is a period of activity with its own unique start and end time. Shift periods cannot overlap with each other - but they can have different target temperatures.
