Calendar

About the Calendar:

The Calendar allows you to view the day patterns you have applied to each day for each zone.

Navigation:

To navigate to the Calendar screen:

1. Log in to the panel using your 6-digit PIN
2. Click the navigation logo in the top left hand corner of the panel
3. Select Calendar from the drop down menu
4. Select the relevant zone to view

Understanding the Calendar:

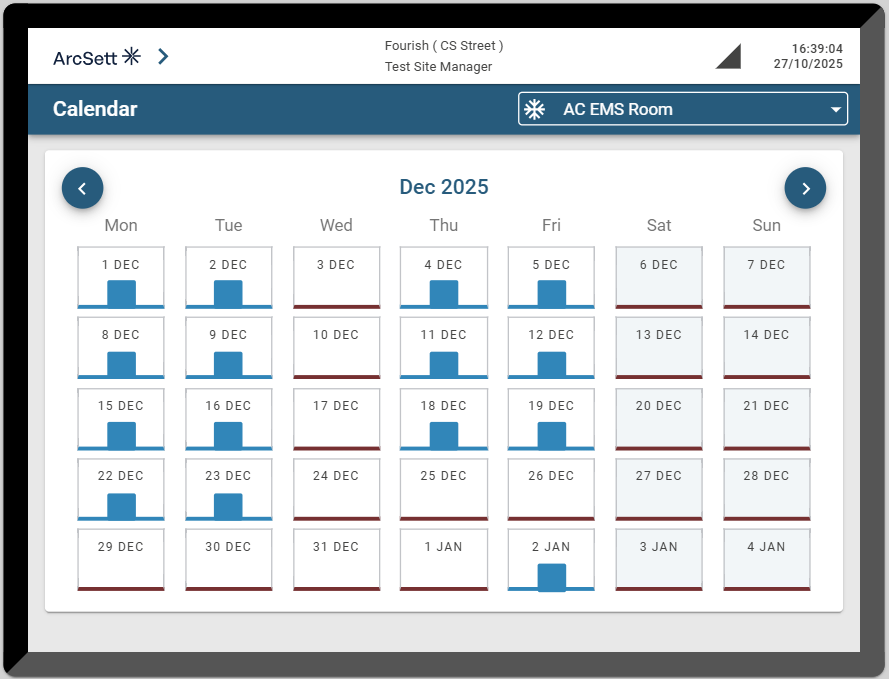

When the calendar screen opens, you will view something similar to the below screen:

To switch the zone being displayed, use the drop-down list in the top right. You can also navigate the month being viewed via the navigation arrows in the top left and right of the page.

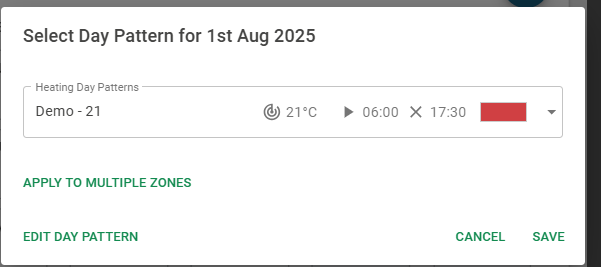

Days in the future, including today's date, can be modified from this screen. Simply click the day pattern set already and a pop-up screen will appear. You can then choose a different day pattern from the drop down list and click save to complete the change.

You can also apply the updated setting for that day to multiple zones. This is done by clicking the dropdown, which will prompt you to select up to 10 to also copy the pattern to. This can be used for holidays, where you know heating is unnecessary.

This is shown below:

Each day on the calendar will be shown as a colour. This colour correlated with the day pattern colour for that day. This is a quick and easy way to see which day pattern is active.

For heating or cooling zones, where a day patterns target temperature is above the fallback, this will also be displayed as a column of activity. If you consider each day to be a 24 hour period from midnight to midnight, the column will be wider the longer the duration of activity (closer to the left the earlier it starts, and closer to the right the later it finishes). This is a quick and easy way to guage how long the heating is scheduled to be active for that day.
