History chart

About the History Chart:

There are four different charts you can view to access more historical information about the various zones connected to the panel. The first of these is the History Chart. This shows the history of the target and actual temperatures for each zone.

Navigation:

To navigate to the History Chart screen:

1. Log in to the panel using your 6-digit PIN
2. Click the navigation logo in the top left hand corner of the panel
3. Select charts from the drop down menu
4. Select the history chart option

Understanding the History Chart:

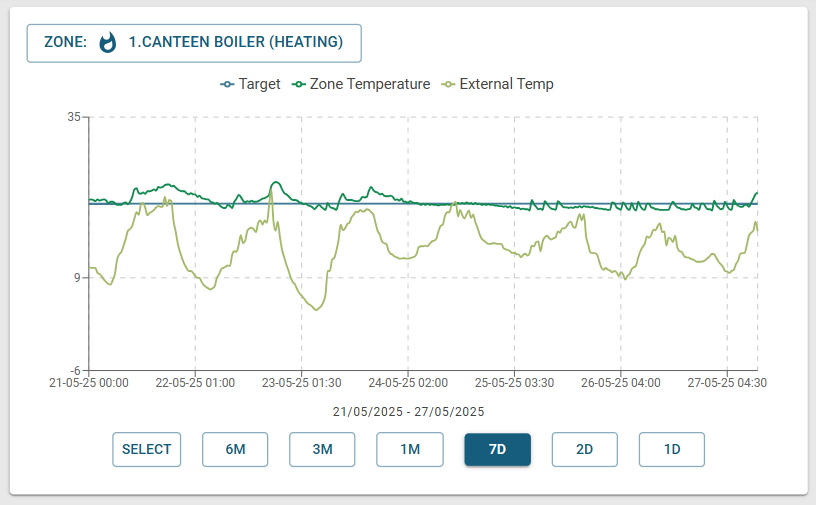

When accessing the history chart you will see something like the below:



The blue line represents the target temperature over time. The dark green line represents the zone temperature taken form the internal temperature sensor. The light green line is the external temperature.

Use the button in the top left hand corner to choose a zone. You can also use the buttons along the bottom of the chart to switch between views for 1 day, 2 days, 7 days, 1 month, 3 months or 6 months. There is also the select button to choose a specific time-frame.

Holding your cursor over the line will bring up a pop-up so you can see the exact readings at the point your cursor is referencing on the chart.

Whilst the outstation is constantly monitoring the various temperatures to ensure controls are always optimised, the panel records this information in half hour increments. Thus, for a single day, you will see 48 readings, one each half hour.
